OSHIMA BRAND Fusing Press Machine

Brand :

OSHIMA

Categories : Fabric Shrinking and Fusing Press Equipment

Model :

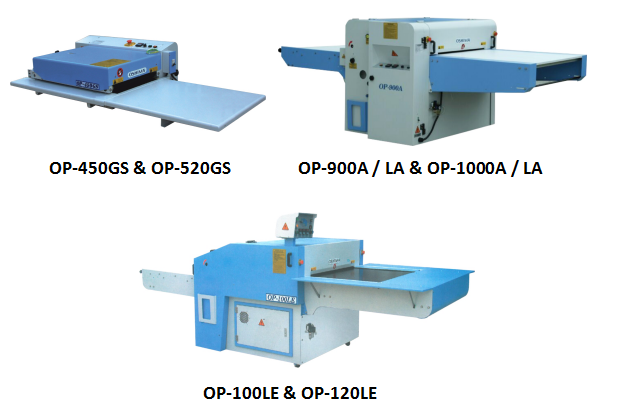

OP-450GS/520GS/900A/900LA/1000A/1000LA/100LE/120LE

Features:

Specification:

Mini Open-side Type

Model	OP-450GS	OP-520GS
Power Supply	1P/220V
Motor	60 W
Power	3.6 KW	4.2 KW
Max Pressure	1 kg/cm²
Temperature	200℃
Fusing Width	450 mm	520 mm
Fusing Time	10 ～ 34 sec
MC Dimension (mm)	1700×910×360	1700×980×360

Continuous Type

Model	OP-900A	OP-900LA	OP-1000A	OP-1000LA	OP-100LE	OP-120LE
Power Supply	3P / 380V
Motor	0.24 KW
Power	12 KW	12.6 KW	14.4 KW	15 KW	21.6 KW	25.2 KW
Max Pressure	5 kg/cm²
Temperature	200℃
Fusing Width	900 mm	900 mm	1000 mm	1000 mm	1000 mm	1200 mm
Fusing Time	10 ～ 34 sec
MC Dimension (mm)	3310×1660×1420	3310×1660×1420	3310×1760×1420	3310×1760×1420	3640×1740×1500	3640×1940×1500
