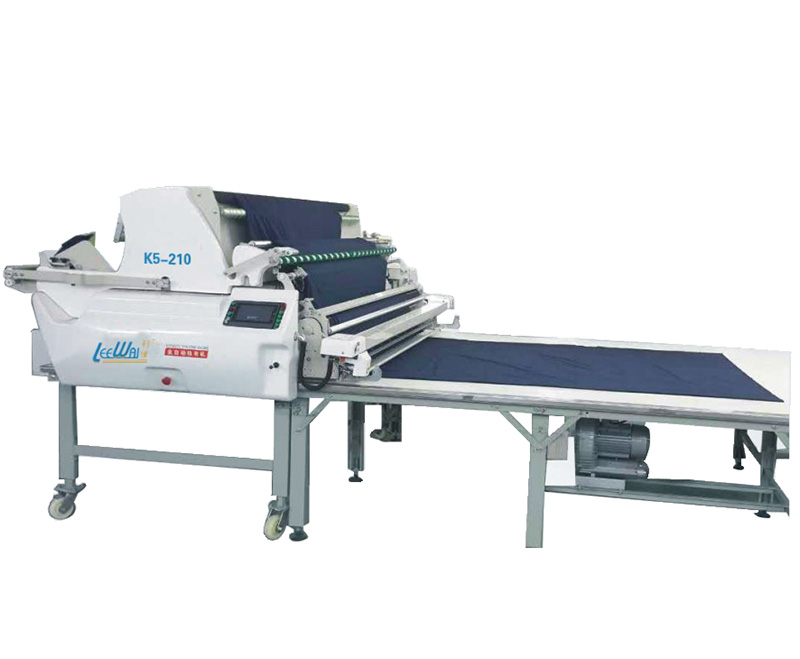

LEE WAI BRAND Auto Fabric Spreading Machine (For Knit and Woven)

Brand :

Categories : Auto Fabric Spreading machine

Model :

K5

Features:

★ Machine returns back to original position once fabric runs empty.

★ The machine power will automatically shut off upon 5 minutes idle.

★ The spread laid fabric is not pulled when the emergency stop triggers.

★ The streamline shape can reduce the wind disturbance, noise and vibe ration.

★ Automatic fabric expanding system.

★ PLC Touch Panel, user friendly operation system.

★ Non-tension spreading.

★ Simple operation increases production efficiently and also ensures the best quality.

Specification:

Model	K5-160	K5-190	K5-210	K5-260	K5-310
Material width	1600mm	1900mm	2100mm	2600mm	3100mm
Roll diameter(max)	500mm
Roll weight(max)	80kg
speed per minute(max)	160m/min
spreading height(max)	One-way 230mm/ Zigzag160mm
Power supply	1P 220V/50Hz 1KW
Table width	1830mm	2130mm	2330mm	2830mm	3330mm
Dimension of machine	2300 x 1650 x 950mm	2600 x 1650 x 950mm	2800 x 1650 x 950mm	3300 x 1650 x 950mm	3800 x 1650 x 950mm

Remark: Not including movable table and cutting table.
